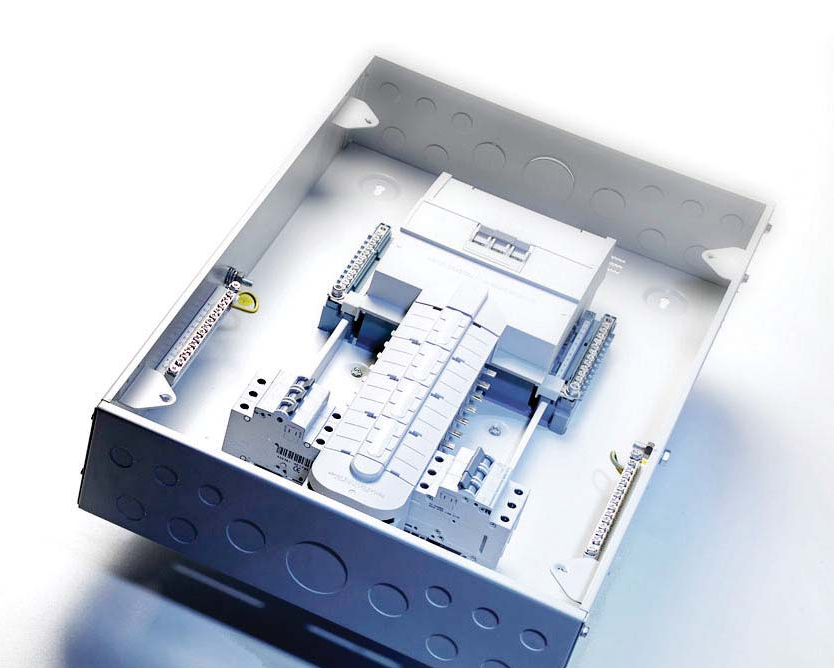

Invicta TPN load center لوحات التوزيع

العلامة التجارية

Hager

- Standard: BS EN 60439-3

- ASTA certified

- Current rating: 125A/250A

- Operating Voltage: 220 / 440 VAC, 3 PH 4 wire

- Frequency: 50 / 60 Hz

- Short circuit withstands: 20kA for 0.2 Sec

- Peak short time withstand: 40kA

- IP: IP41

- Range: 4/24 TPN - 12/72 SPN way

- Colour: RAL 9002

- Lock: Push to open with key lock

Advantages & Benefits:

- Best performance of short circuit withstand: 20kA for 0.2sec

- Compact and enough space for wiring

- Reversible door

- Push to open and key lock provision

- Removable and height adjustable PAN assembly

- Wrap around neutral to facilitate even distribution of neutral cables

- Fully insulated busbar stalk with provision for circuit labeling

- Top TAP-OFF provision for extension to other boards

- Removable Gland plates

- Dual knockouts to suit cable size

- Side knockouts for cable routing to adjacent load centers
