Brand

CMP

Technical Specification

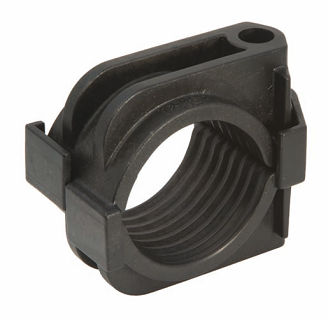

Sabre – (1BC)
- Third-party certification to IEC 61914:2009
- Available in Nylon, Low Smoke & Fume (LSF) V0 Nylon & LUL approved polymer
-Sunlight (UV) & weather resistant
- Operating temperature -40°C to +60°C
- 10 - 57mm in 10 sizes
- Excellent axial & lateral load retention
- Single bolt fixing design

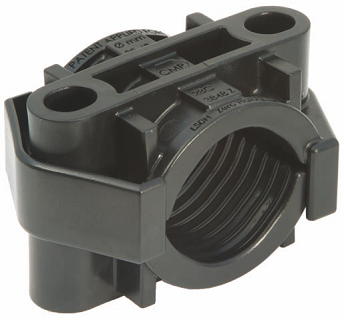

Falcon – (2BC)
- Third-party certification to IEC 61914:2009
- Available in Nylon, Low Smoke & Fume (LSF) V0 Nylon & LUL approved polymer
- Sunlight (UV) & weather resistant
- Operating temperature -40°C to +60°C
- Can be double stacked
- 38 - 135mm in 8 sizes
- Excellent axial & lateral load retention
- Two bolt fixing design

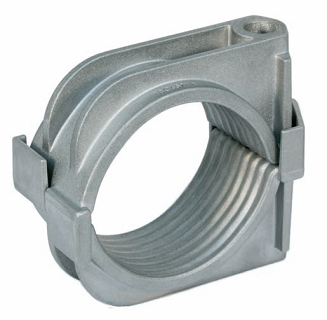

Valiant – (1BCAL)
- Third-party certification to IEC 61914:2009
- Available in high pressure die cast aluminum
- Sunlight (UV) resistant
- Operating temperature -60°C to +150°C
- Can be double stacked
- 10 - 71mm in 12 sizes
- Excellent axial & lateral load retention
- Single bolt fixing design

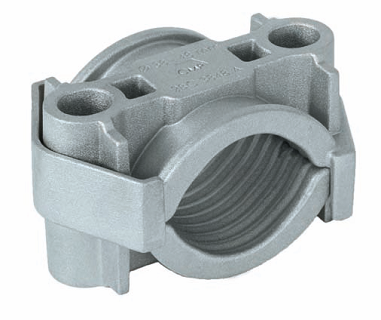

Zenith – (2BCAL)
- Third-party certification to IEC 61914:2009
- Available in high pressure die cast aluminum
- Sunlight (UV) & weather resistant
- Operating temperature -60°C to 150°C
- Can be double stacked
- 38 - 151mm in 9 sizes
- Excellent axial & lateral load retention
- Two bolt fixing design
Sapphire – (SHDSS Single cable cleat)
- Third-party certification to IEC 61914:2009
- 316L stainless steel
- 32 to 150 mm in 11 sizes for single/parallel
formation
- Operating temperature -40°C to +60°C
- Low Smoke & Fume (LSF) liners as standard
- Combined single (M12) and two bolt (M10)
fixing design

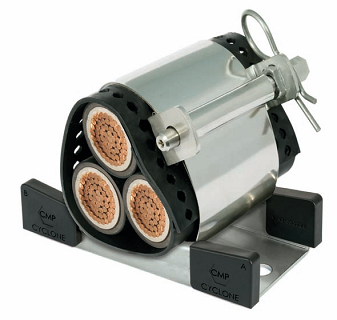

Cyclone I (LDSTR 2 Loop cable cleat)
- Third-party certification to IEC 61914:2009
- Lightweight aluminum base with 316L
stainless steel strap
- 24 - 145mm in 15 sizes for trefoil formation
/ application
- 36 - 118mm in 8 sizes for multicore cables
or single core parallel formations
- 21 - 68mm in 8 sizes for quad formations
- Short circuit rating of 124kA peak fault
- Operating temperature -40°C to +60°C
- Low Smoke & Fume (LSF) liners as standard
- Combined single (M12) and two bolt (M10)
base fixing design
Cyclone II (SDSTR 2 Loop cable cleat)
- Third-party certification to IEC 61914:2009
- 316L stainless steel base with stainless steel strap
- 24 - 145mm in 15 sizes for trefoil formation
/ application
- 36 - 118mm in 8 sizes for multicore cables
or single core parallel formations
- 21 - 68mm in 8 sizes for quad formations
- Short circuit rating 151kA peak fault
- Operating temperature -40°C to +60°C
- Low Smoke & Fume (LSF) liners as standard
- Combined single (M12) and two bolt (M10)
base fixing design
Cyclone III (HDSTR 3 Loop cable cleat)
- Third-party certification to IEC 61914:2009
- 316L stainless steel base with stainless steel strap
- 24 - 145mm in 15 sizes for trefoil formation
/application
- 36 - 118mm in 8 sizes for multicore cables
or single core parallel formations
- 21 - 68mm in 8 sizes for quad formations
- Short circuit rating 180kA peak fault
- Operating temperature -40°C to +60°C
- Low Smoke & Fume (LSF) liners as standard
- Combined single (M12) and two bolt (M10)
base fixing design

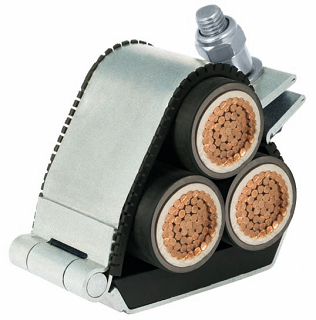

Huron (LDAL cable cleat)
- Third-party certification to IEC 61914:2009
- 5000 series aluminum
- 19 - 128mm in 23 sizes for trefoil formation
/ application
- Short circuit rating of 84kA peak fault
- Operating temperature -40°C to +60°C
- Low Smoke & Fume (LSF) liners as standard
- Combined single (M10) or two bolt (M10)
fixing design
Patriot (SDSS cable cleat)
- Third-party certification to IEC 61914:2009
- 316L stainless steel
- 19 - 128mm in 23 sizes for trefoil formation
/ application
- Short circuit rating of 135kA peak fault
- Operating temperature -40°C to +60°C
- Low Smoke & Fume (LSF) liners as standard
- Combined single (M10) or two bolt (M10)
fixing design

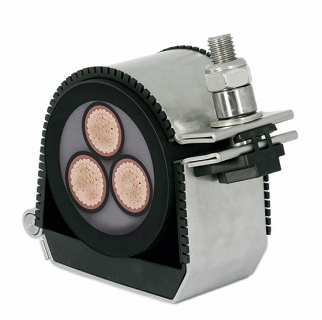

Sovereign (HDSS cable cleat)
- Third-party certification to IEC 61914:2009
- 316L stainless steel
- 19 - 128mm in 23 sizes for trefoil formation
/ application
- Short circuit rating of 190kA peak fault
- Operating temperature -40°C to +60°C
- Low Smoke & Fume (LSF) liners as standard
- Combined single (M12) and two bolt (M10)
fixing design
Conqueror (RTSS cable cleat)
- Third-party certification to IEC 61914:2009
- 316L stainless steel
- 19 - 130mm in 16 sizes for trefoil formation
/ application
- Short circuit rating of 170kA peak fault
- Operating temperature -40°C to +60°C
- Low Smoke & Fume (LSF) liners as standard
- Combined single (M12) and two bolt (M10)
fixing design


Overview & Usage

CMP Products offers a comprehensive range of cable cleats that support cables and conductors, retaining the mechanical load of the cable itself and reducing the mechanical stress placed on any cable termination.
CMP cable cleats are designed for use within heavy industrial applications and hazardous locations, as well as the arduous conditions and harsh environments encountered by operators in the railways, tunnels and underground, oil and gas and petrochemical industry sectors.
